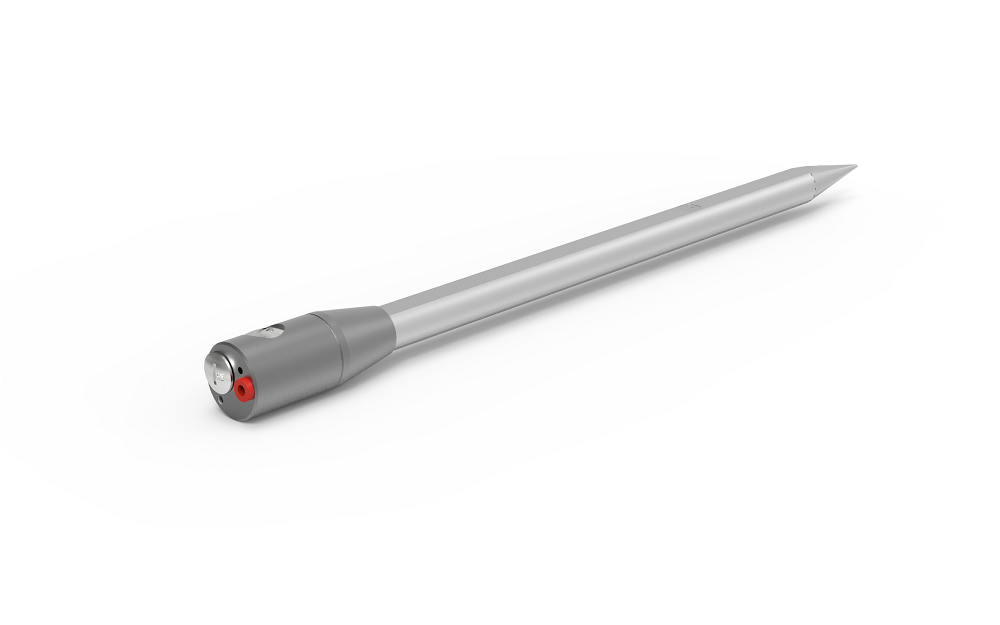

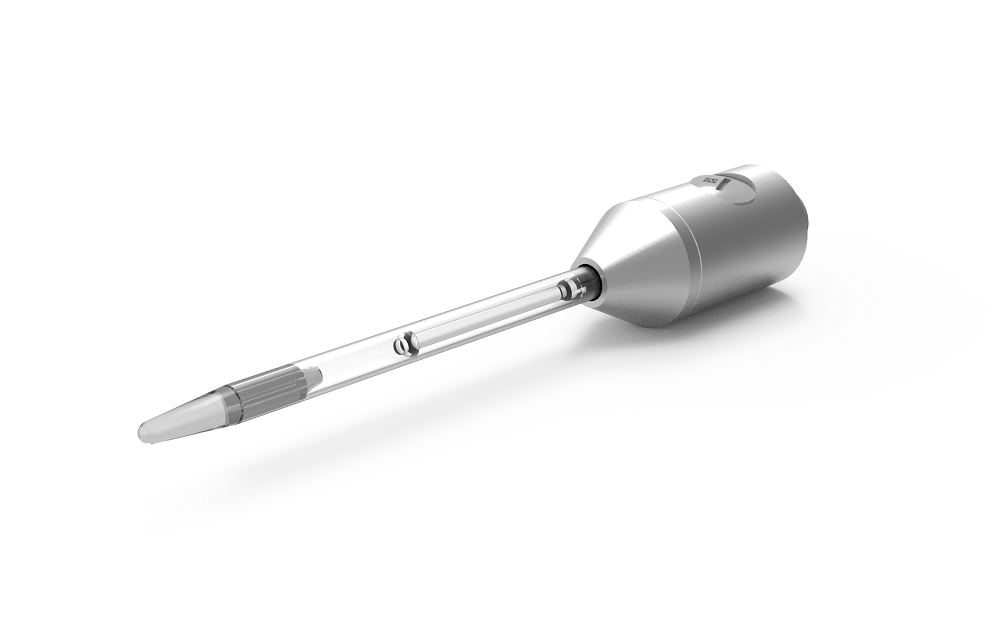

B262 MSS Memorizing Shock Wave Measuring System
Standard Equipment by HPI, Austria
The B262 MMS Memorizing Shock Wave Sensor Air/Water is an autonomous shock wave measuring equipment with inbuilt configurable ICPTM amplifier, ideal for accurate shock wave measurements in air or water, with input ranges of 1000 mV, 5000 mV, and 10000 mV incl. onboard non-volatile memory.
| Temperature Range | -10 to +50 C |
|---|---|
| Offset correction | automatically |
| Offset Correction | automatically |
| Max. Sampling rate | 1 MHZ |
| Resolution | 14 bits |
| Non-volatile Memory | 64 K samples |
| Measurement time | 64 msec to 3.2 sec |
| Trigger level | 1 to 99% FSR |
| Pre-trigger period | 5 to 99% |
| Standby Time | 0 to 99 hours |
| Ready for measurement | 3 hours |
| Time for read out | Limitless |
| System accuracy “Air” | +_ 2% |
| System accuracy “water” | +_ 3% |
