B802 Spike & Knife Tester
Protective Material by HPI, Austria
Technical Information
System:

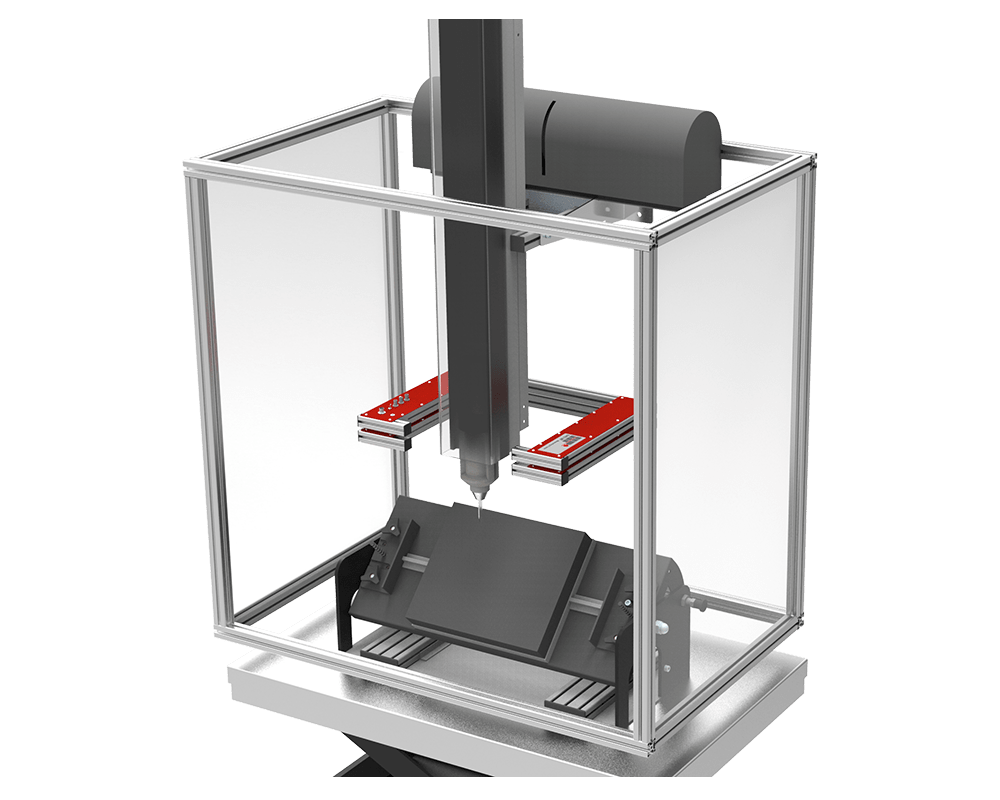

- Lift table incl. mounting device for Backing Material Fixture (angular selectable from 0°up to 65)
- Linear guiding in drop tube incl. drive unit to lift up the drop weight
- Precision measurement and display of drop mass height position
- Release of drop mass by means of electromagnet
- Light Screen with Standard Pulse Output for velocity measurement
- Drop Mass and Set of Backing Material according to NIJ 0115.00

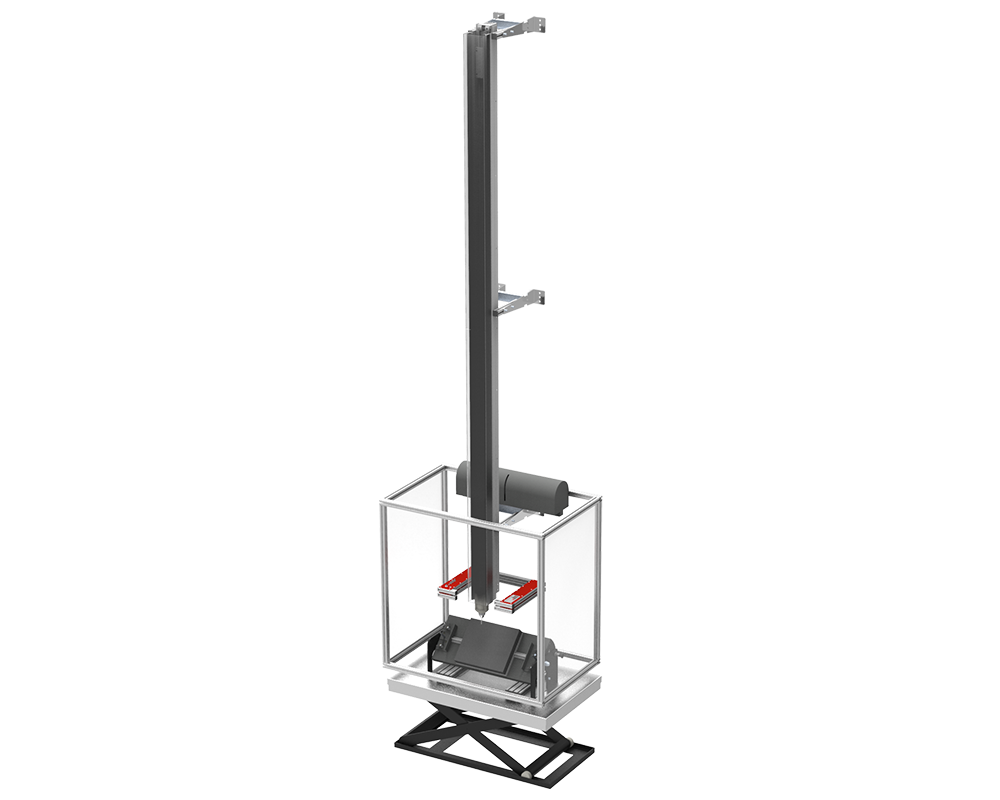

Spike & Knife Test Device consisting of:
- Basic Unit
- Magnet for Drop Mass
- Initiator for Drop Mass release
- Drop Height adjustable up to 4.0m
- Total Height 5.0m
- Light Screen for Drop Velocity according to NIJ, VPAM & HOSDB
Requirements for the laboratory
(e.g. height ceiling, free space)
- Base area 1400mm x 1000mm /
- Power Supply CEE Connector 3x400V, 50 Hz, 16A
- Ceiling height approx. 5000mm
Overview consumables
(knives, spikes, backing foams)
- Knife Blade P1
- Knife Blade S1
- Spike for NIJ
Dimension:
